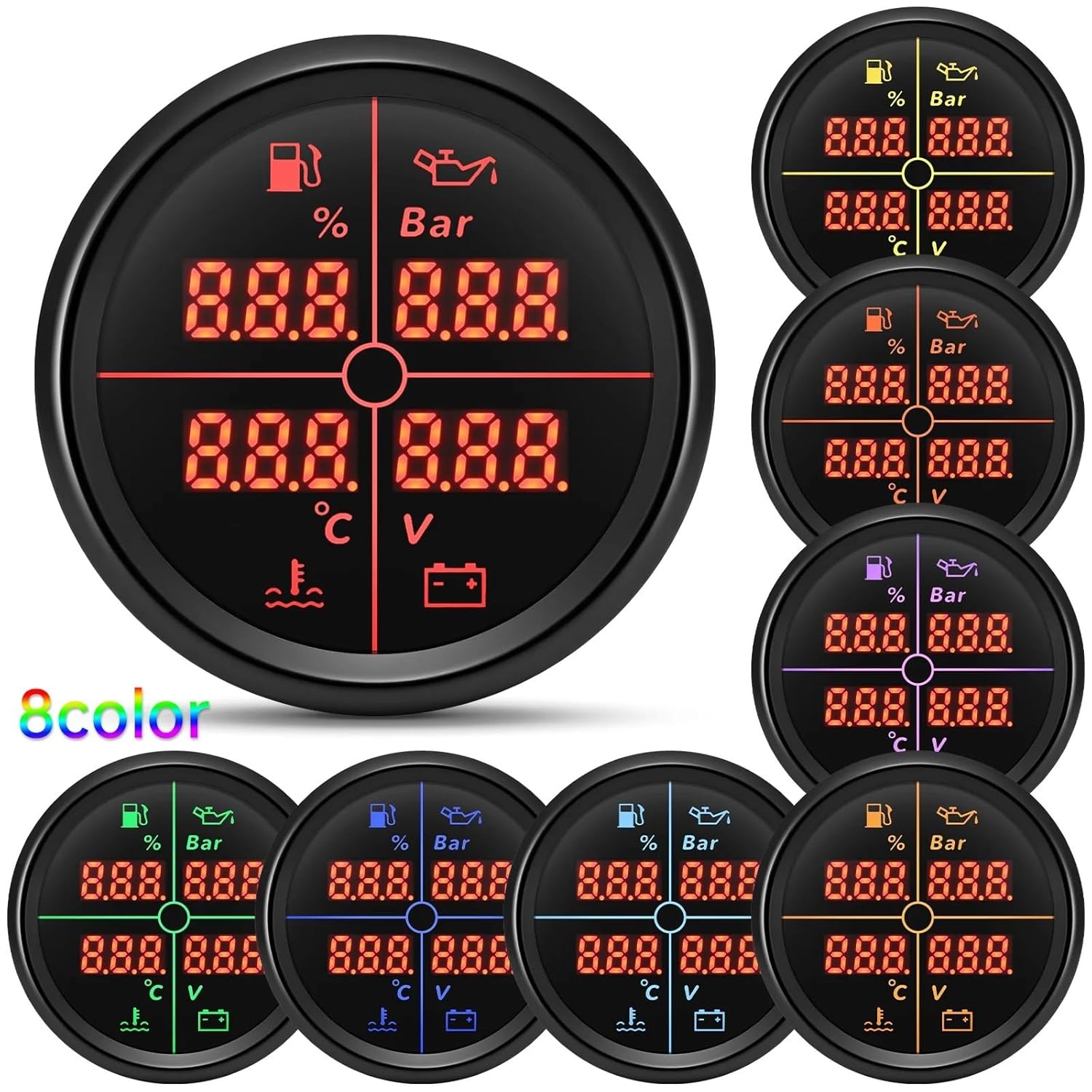

52mm / 85mm 4 in 1 Multifunction Gauge Fuel Level Oil Pressure Water Temperature Voltmeter with 8 Colors Backlights for Car Boat(85mm BS)

Oil Pressure Gauges52mm / 85mm 4 in 1 Multifunction Gauge Fuel Level Oil Pressure Water Temperature Voltmeter with 8 Colors Backlights for Car BoatOperation:<; 1 second) to change the backlight color: red (default) green blue white yellow yellow green orange purple.2. Long press the MODE button( >4 seconds) to enter the setting mode:a) Short press the button(<; 1 second) to select the setting indicator. After your selection is confirmed(The corresponding digits will be flickering ). Long press the button ( >2 seconds ) to scroll through the parameter group. Like F01 to F05 for fuel level gauge, P01 to P03 for pressure gauge.b) After scrolling to the parameter required, release the button(>4seconds) , the setting was successful and data will be saved.:-Fixing dimension: 52MM/85mm(3-3/8") -Fuel Level: 0-100% (Level sensor siginal: 0-190ohm(Default) /0-180ohm/10-180ohm/240-33ohm/240-30ohm available)-Voltmeter: 9-32V-Water Temperature: 40-120C (Signal: 287.4-22.4ohm)-Oil Pressure: 0-5Bar 0-10Bar(Default) 0-25Bar (Pressure sensor signal: 10-184ohm)-Backlight: red (default),green, blue, white, yellow, yellow green,orange,purple52mm 4in1 Multi-Function GaugeFeatures:-Suitable for all kinds of cars, boats, motorcycles.-With instructions of high precision, repeatability and versatility, reliability and stability,drive and control is relatively simple and so on.-Using a stepper motor drive pointer, accurate display of the fuel level, water temp.,oil pressure, voltage.Connection:1,Red --+9-32VDC2,Black --Fuel Signal Input3,Orange--Backlight(+)4,Blue--Ground(-)5,Purple-- Water Temp Signal Input6,White-- Oil Press Signal InputPackage Included(as picture):1 x 85mm 4 in 1 Multifunctional Gauge1 x Installation Instruction1 x Cable52MM Diam85MM==========High-concerned chemical : NoneOther Part Number : Oil Pressure gaugePlacement on Vehicle : Front Part Number : Water Temperature GaugeInterchange Part Number : fuel level gaugeSpecial Features : 4 In1 Multifunctional GaugeItem Height : 85mm/52mmItem Width : 85mm/52mmItem Length : 85mm/52mmMaterial : stainless steel and plastic NO. : water temperature gauge meterName : 52/85mm 4 In 1 Multifunctional GaugeColor : white silver/black silver/blackWorking Voltage : 12-24VOil Pressure Meter : fuel level meterVoltage gauge : volt meterWater temp range : 40-120fuel level sensor : Water Temperature GaugeWater Temperature Gauge : Digital Car VoltmeterCar Boat Gauges : 85mm Boat Water Temp Gauge
