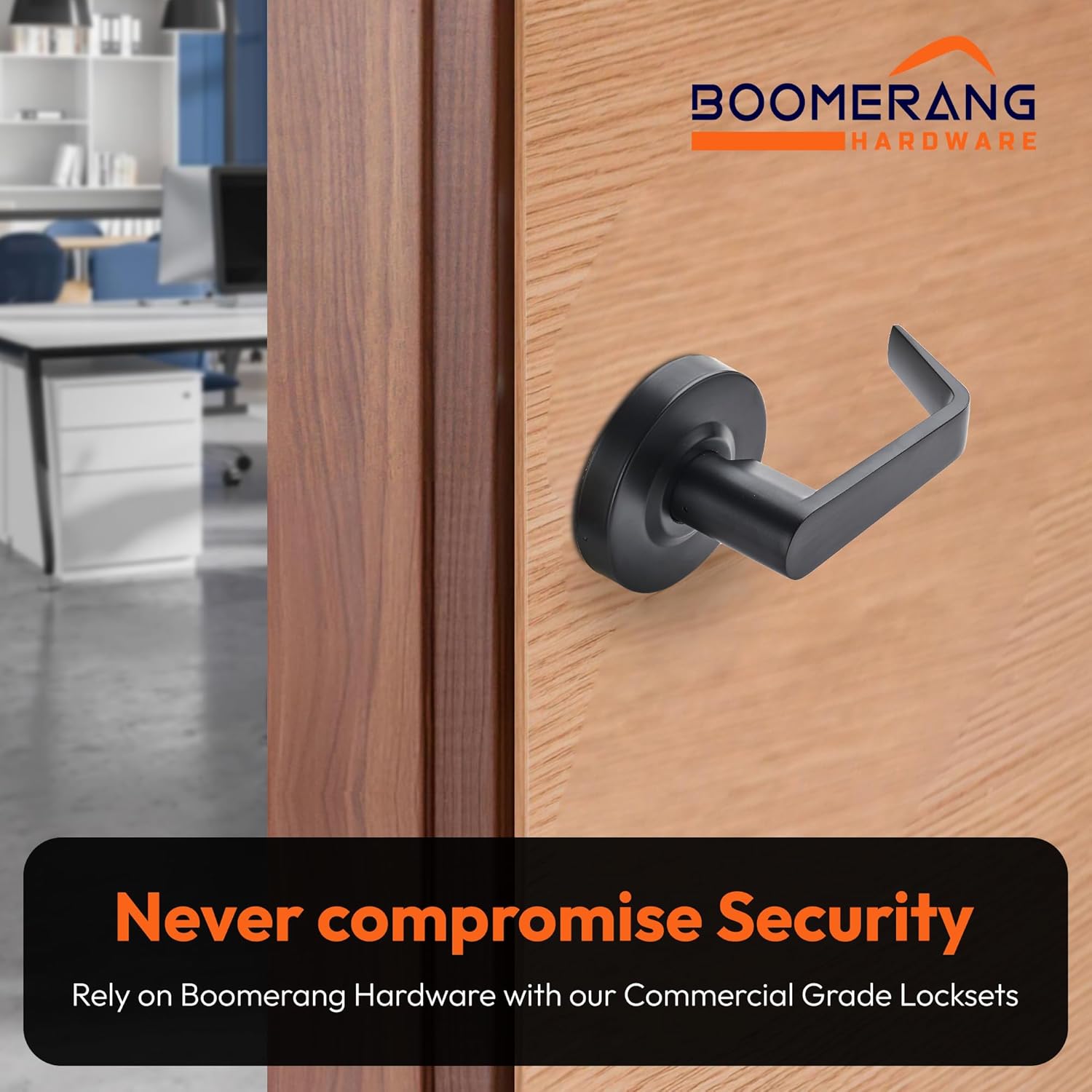

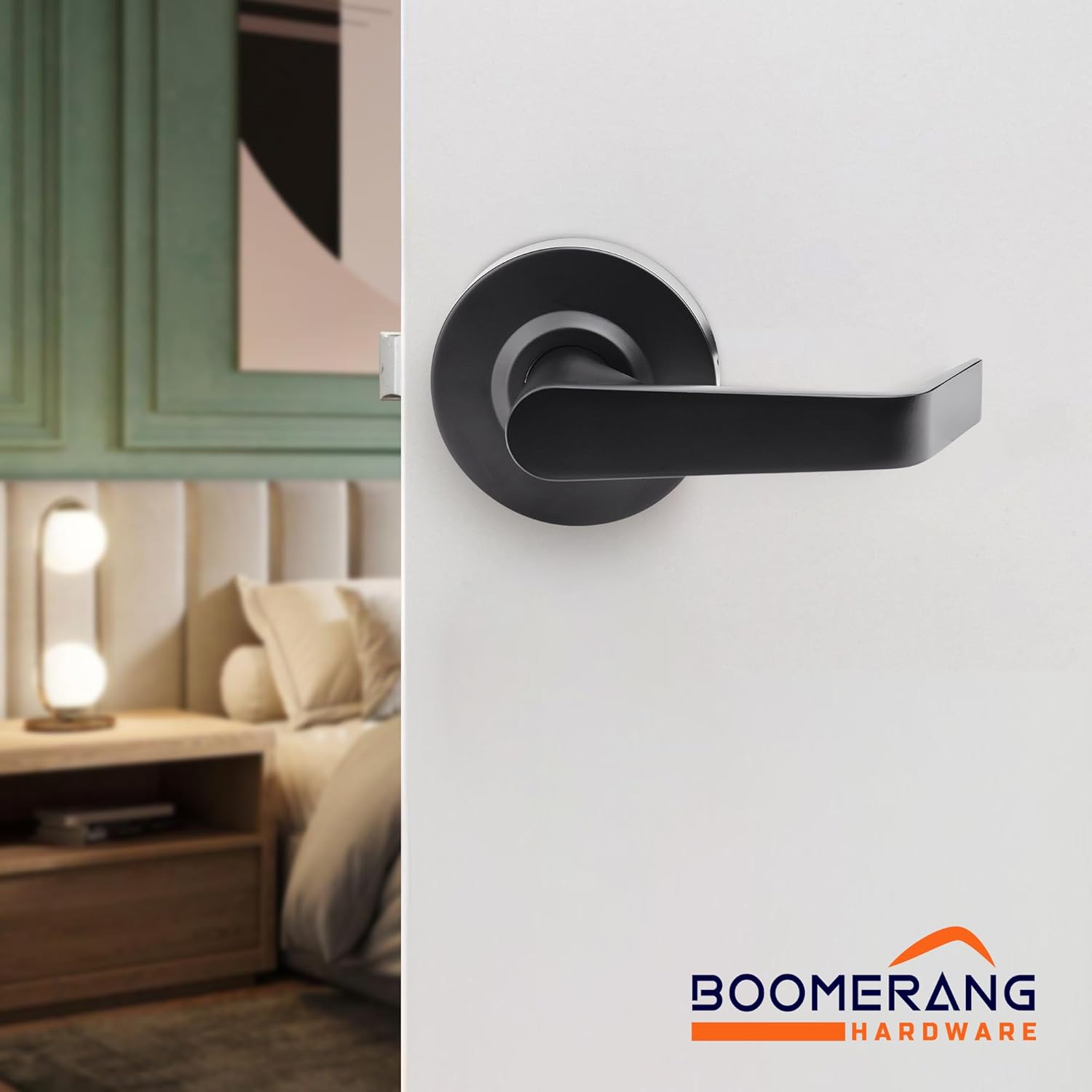

Boomerang Passage/Closet Function - ADA Commercial Door Lever Lock - Heavy-Duty Industrial Door Handle, Cylindrical Lever Lock, Non-Handed Grade 2, Matte Black (US19), Passage/Closet
Product details
| Management number | 216520695 | Release Date | 2026/04/19 | List Price | $51.98 | Model Number | 216520695 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- FUNCTION: Passage/Closet Function Commercial lever door knobs with locks from BOOMERANG HARDWARE. This "Passage/Closet" variety is used in applications where the lever is unlocked on either side. Both inside and outside levers are always free and operable
- COLOR & SIZING: Our commercial door locks are offered in Satin chrome (US26D) and Matte Black (US19) finishes. Designed for 1-3/8" to 1-3/4" (35mm to 44mm) doors, but they fit 1-3/8" to 2" thick doors and come standard with a 2-3/4" backset (Optional 2-3/8" available, please call) These are non-handed locks for commercial door levers, so they are suitable for either right- or left-handed doors.
- SPECIFICATIONS: Our door hardware & locks come with standard ANSI 4-7/8" x 1-1/4" square corner strikes and 1-1/8" x 2-1/4" square corner faceplates. The backset is 2-3/4" (70mm), the stainless steel Roses are 3-3/8" (90mm) in diameter, and Latchbolt Stainless steel is 1/2" (12.5mm) throw standard. These specifications make our door lever handle lock fitting for 161 door prep & regular 2-1/8″ bore prep ideal replacement locks or for new doors
- CERTIFICATION: Designed to be a reliable commercial door hardware, our heavy-duty entry key locks are ANSI/BHMA A156.2 - Grade 2 (exceeds 400,000 cycles) certified and UL listed. Each lever door handle with lock is made to meet A117.10 accessible design standards. It is also fire rated for up to 3 hours. Our commercial door locks meet the needs of home/business owners, apartment managers, contractors, maintenance facility managers, handymen, locksmiths, and property managers.

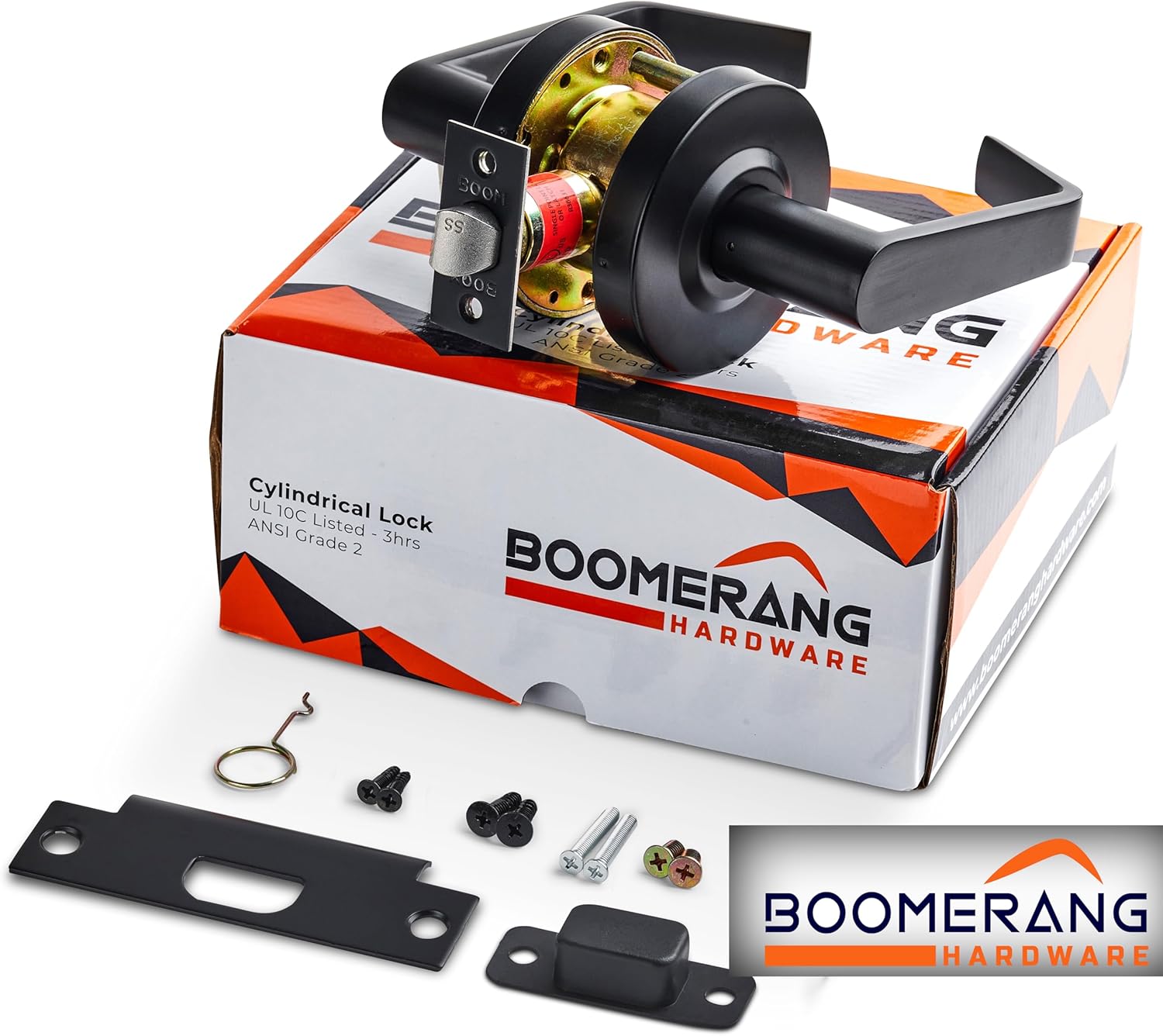

- WHAT'S IN A BOX: Each box Boomerang Hardware lever door handle locks includes 1 cylindrical lockset, screws and bolts, user-friendly instructions, 1 ANSI strike, 1 reversible latch unit. The heavy-duty door closer features cold-rolled steel, machined and threaded hubs, and locking nuts to securely bolt the chassis to the door, thereby preventing loosening of the lockset even with hundreds of uses per day.
| UPC | 199284261204 |
|---|---|
| Color | Matte Black (US19) |
| Shape | L-Shaped |
| Lock Type | Cylindrical |
| Brand Name | Boomerang Hardware |
| Item Depth | 1-3/8” to 1-3/4” (35mm to 44mm) |
| Metal Type | Alloy Steel, Stainless Steel |
| Style Name | Passage/Closet |
| Unit Count | 1.0 Count |
| Handle Type | Lever |
| Finish Types | Powder Coated |
| Manufacturer | Boomerang Hardware |
| Model Number | BH8573-PASSAGE-BLACK |
| Material Type | Alloy Steel, Aluminum, Stainless Steel |
| Exterior Finish | Matte Black |
| Handle Material | Stainless Steel |
| Number of Items | 1 |
| Hand Orientation | Ambidextrous |
| Additional Features | Adjustable |
| Included Components | Faceplate, Instructions, Screw Packs, Strike |
| Projection Distance | 90 Millimeters |
| Customer Package Type | Standard Packaging |
| Item Dimensions L x W | 4"L x 3"W |
| Handle Attachment Mechanism | screw |
